8.2 LOAD BALANCER ( Specialized Cloud Mechanisms Unit 3 chapter 1)

8.2. Load Balancer

A common approach to horizontal scaling is to balance a workload across two or more IT resources to increase performance and capacity beyond what a single IT resource can provide.
The load balancer mechanism is a runtime agent with logic fundamentally based on this premise.
Beyond simple division of labor algorithms (Figure 8.5), load balancers can perform a range of specialized runtime workload distribution functions that include:
• Asymmetric Distribution – larger workloads are issued to IT resources with higher processing capacities
• Workload Prioritization – workloads are scheduled, queued, discarded, and distributed workloads according to their priority levels
• Content-Aware Distribution – requests are distributed to different IT resources as dictated by the request content

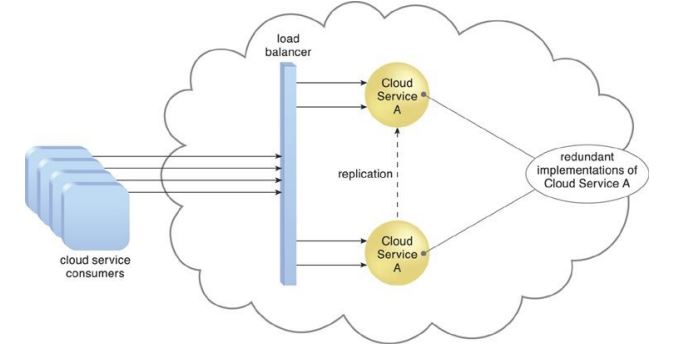

Figure 8.5. A load balancer implemented as a service agent transparently distributes incoming workload request messages across two redundant cloud service implementations, which in turn maximizes performance for the cloud service consumers.
A load balancer is programmed or configured with a set of performance and QoS rules and parameters with the general objectives of optimizing IT resource usage, avoiding overloads, and maximizing throughput.
The load balancer mechanisms can exist as a:
• multi-layer network switch
• dedicated hardware appliance
• dedicated software-based system (common in server operating systems)
• service agent (usually controlled by cloud management software)
The load balancer is typically located on the communication path between the IT resources generating the workload and the IT resources performing the workload processing.
This mechanism can be designed as a transparent agent that remains hidden from the cloud service consumers, or as a proxy component that abstracts the IT resources performing their workload.
